Workflow Studio: observe and design Claude Code workflows

The short version: Workflow Studio is a local companion for Claude Code's built-in Workflow tool. It has two halves — Observe, a dashboard that reads Claude Code's own on-disk run artifacts and draws each multi-agent run as a phase graph and a wall-clock timeline, and Author, a 12-block canvas that compiles to a real, runnable Workflow script. Both are exposed to the agent through an MCP server with nine tools. It runs on 127.0.0.1, it is MIT-licensed, and you install it with one paste. The current release is v0.2.0.

The problem: a multi-agent run is a black box

Claude Code's Workflow tool is its deterministic multi-agent primitive: you write a small JS script that fans agents out in parallel, pipes a list through stages, gates on a value, loops until a condition holds. It works. The problem starts the moment the run finishes.

A finished run leaves real artifacts on disk — under ~/.claude/projects/<project>/<session>/subagents/workflows/wf_*/ you get a journal.jsonl, a per-agent transcript for every subagent, and a small metadata file each. That is a lot of ground truth. Nothing renders it. So you scroll. You cannot see the phases at a glance, how wide the fan-out actually went, how many tokens each agent burned, how long each one took, or which branch a gate picked when it mattered.

That is the same shape of failure I wrote about in silent failures in agentic systems: nothing crashes, so nothing tells you that eleven of your twelve verifiers returned an empty result. And it compounds on the authoring side — the only way to build one of these is to hand-write the script, and the only channel between the script you wrote and the agent that runs it is a .js file dropped on disk.

What Workflow Studio is

A locally-run companion layer, not a runtime. It ships no agents of its own and defines no execution engine — it sits on top of the one you already have. Two surfaces plus a channel:

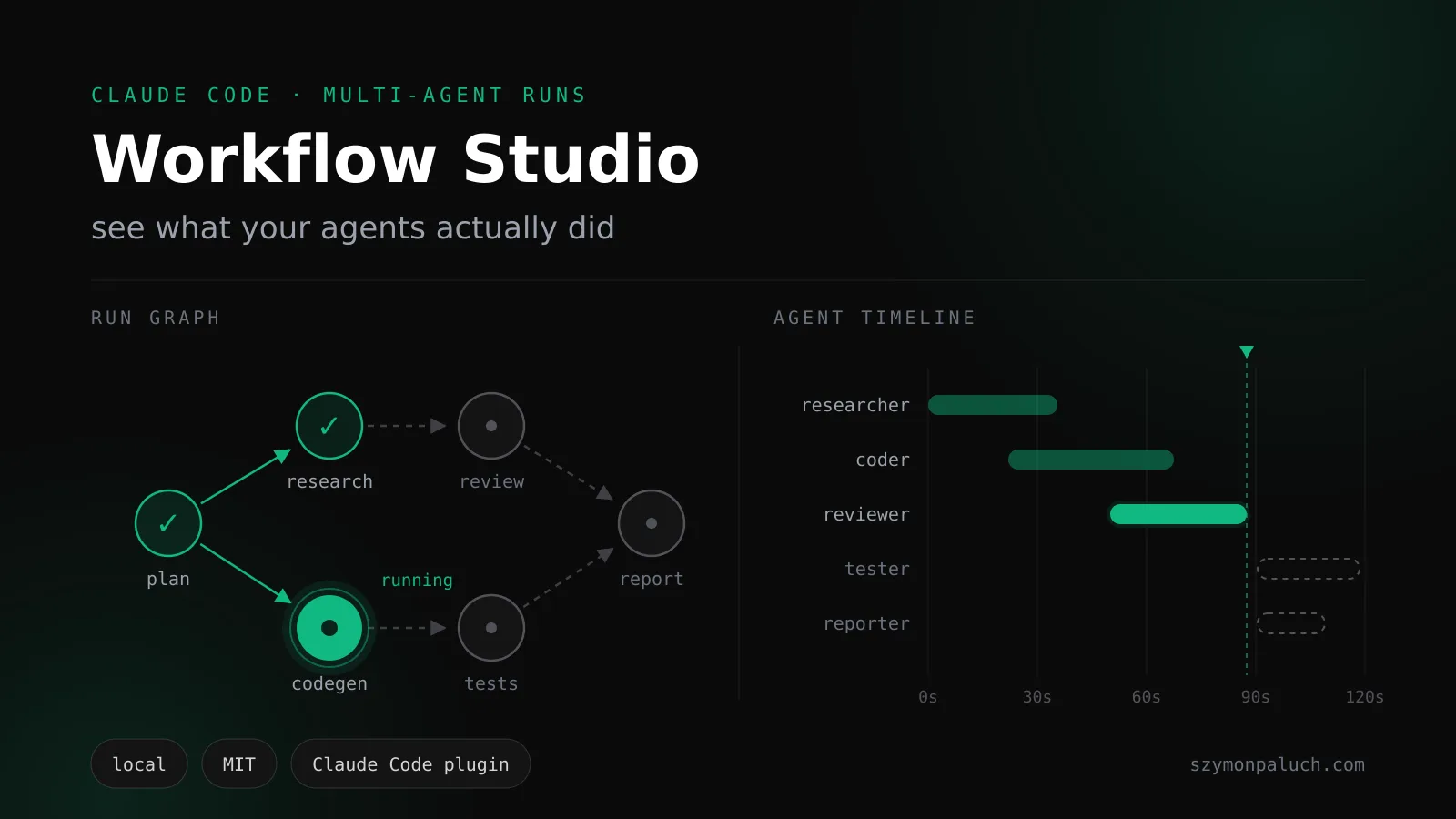

• Observe — a dashboard that passively reads Claude Code's run artifacts and renders each run as a phase/agent graph and a timeline;
• Author — a no-code block canvas that compiles down to a real Workflow script;
• MCP — a stdio server with nine tools, so the same Claude Code agent that runs your workflows can also read your designs, inspect the observations, and write new designs back into your builder.

One thing to be clear about up front, because it shapes everything else: Workflow Studio cannot start a run. Not over MCP, not from the builder. It reads what Claude Code already produced and it hands the agent a script the agent runs with its own Workflow tool. That is a design decision, not a gap, and I explain why in the authoring section.

Observe: see what actually ran

The dashboard turns a run into a graph you can read. Phases, the fan-out, tokens per agent, the branch taken, each agent's output. Click a node and the inspector shows what that agent was given and what it returned — its prompt, its thinking, its tool calls, its output, its model, its state and how long it took, and its spawn depth.

The timeline view answers the other question the graph does not: what overlapped with what. A fan-out that looks like one wide row in the graph is usually a staircase in wall-clock time, and seeing that is how you find out that your second fan-out was waiting on a single straggler from the first.

Observing is also where the next workflow usually starts. When a run turns out well, you promote it to a reusable workflow in one click — the graph you were just reading opens in the builder as a starting point, so a good pipeline becomes a template instead of something you reconstruct from memory next month.

Two practical notes. The dashboard refreshes by polling with a short cache, not by pushing — it catches up within a couple of seconds, it is not a socket. And it reads across all your projects and sessions, so old runs stay browsable long after the session that produced them is gone.

Author: build the recipe, not the boilerplate

The other half is a canvas. You drop blocks, wire the ports, and Workflow Studio compiles the graph to a real Claude Code Workflow script — the native calls (agent(), phase(), parallel(), pipeline(), log()) plus a sidecar comment holding the design. The round-trip is lossless: a compiled script reopens as the exact graph you drew, so you can edit it on the canvas, in the editor, or both, without either side losing work.

There are twelve block kinds. Each one declares the shape of its output, which is what lets a downstream block branch or map on a real field instead of on a string you hope is there:

You never start from an empty canvas. Every new workflow begins from one of seven built-in patterns that already exercise the dynamic primitives: Basic (agent plus in-place iteration), Classify and act (a classifier enum routing to one of several branches), Fan-out and synthesis, Adversarial verification (independent verifiers trying to refute the worker's result — the same idea as consensus verification), Generate and filter, Tournament, and Loop until done. Pick one, then edit it.

Install it in one paste

You need uv / uvx on your PATH and Python 3.9 or newer. Nothing else — the dashboard ships pre-built inside the package, so there is no Node step.

You are probably already sitting in a coding agent. Hand it this and walk away:

Read https://github.com/hculap/workflow-studio/blob/main/AGENT_INSTALL.md
and set up Workflow Studio for me — run the steps, verify it,
and tell me whether to restart Claude Code.

Prefer to do it yourself? These two are slash commands you type in a Claude Code session — an agent cannot run them for you:

/plugin marketplace add hculap/workflow-studio
/plugin install workflow-studio@workflow-studio

On Claude Code 2.1 and newer there are shell equivalents (claude plugin marketplace add …, claude plugin install …), which is what the agent path uses. Either way, restart Claude Code afterwards — the MCP tools and the /workflow-studio:dashboard command only load on the next session. Verify with claude mcp list; you want to see the server as connected. If it shows as failed, it is almost always uvx missing from the PATH a GUI-launched Claude Code inherited.

You can also skip the plugin entirely. uvx workflow-studio starts the dashboard on http://127.0.0.1:8787/ and opens a browser; uvx workflow-studio mcp is the MCP server on stdio, which you can register by hand with claude mcp add workflow-studio -s user -- uvx workflow-studio mcp. One caveat worth knowing: uvx pulls the package from PyPI and the plugin pins no version, so you pick up new releases silently.

Where it fits next to LangGraph, CrewAI and n8n

Workflow Studio is not competing with those. They are a different layer of the stack. LangGraph, CrewAI, AutoGen, the OpenAI Agents SDK, n8n and Flowise each hand you a runtime to adopt, and each is portable across model providers — which is a genuine strength Workflow Studio does not have and is not trying to have. Workflow Studio assumes you already run Claude Code, and gives you a way to see what a run did and to author the next one visually.

That table reflects each tool's own positioning as of mid-2026, and licenses and project status change. Every one of them is capable in its niche — several have a more full-featured canvas or stronger tracing than a v0.2.0 side project, and all of them are portable across model providers, which Workflow Studio is not. The axis here is fit, not ranking. If you are not on Claude Code, none of this is for you.
